Machines.

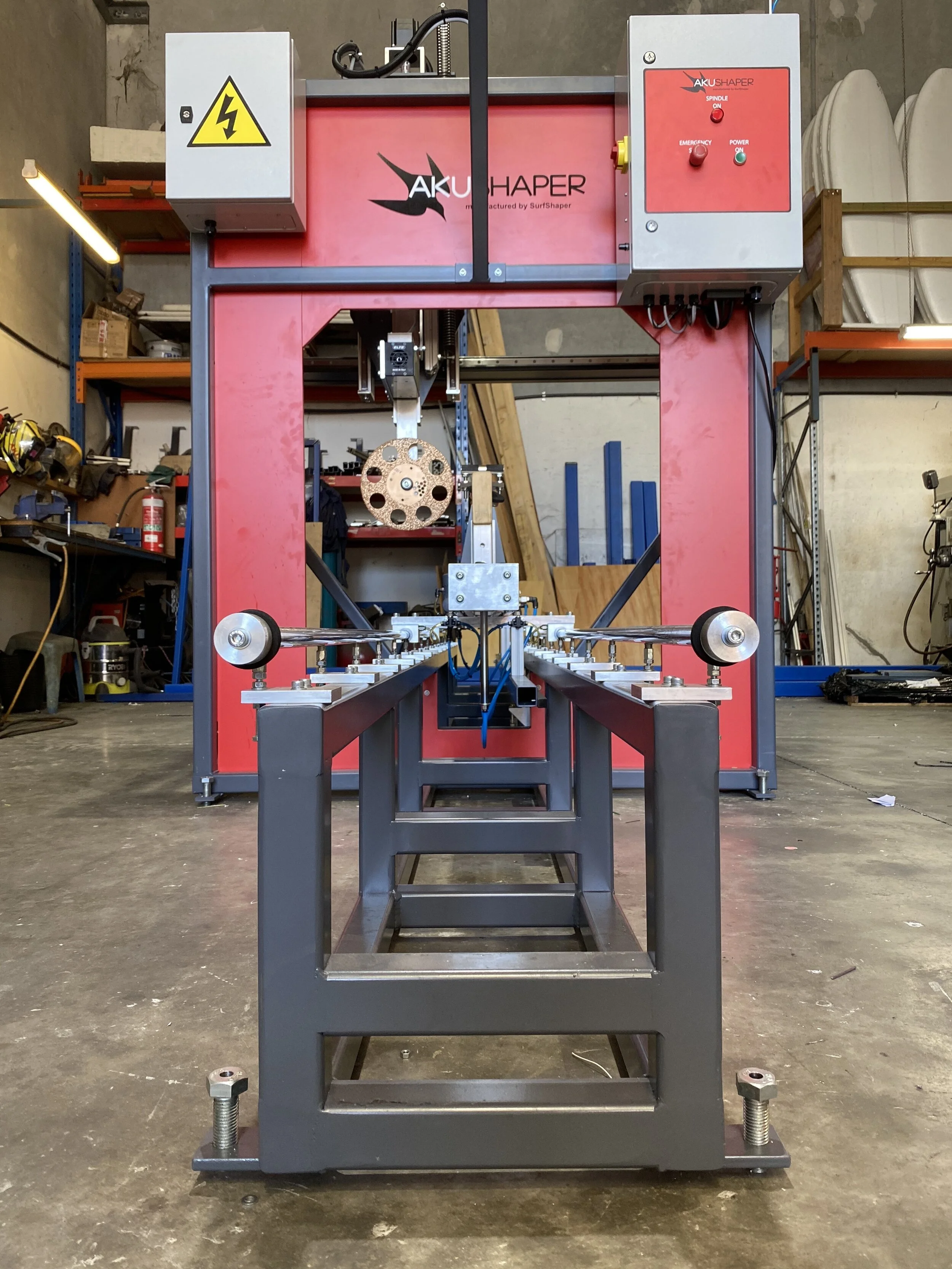

Custom Shaping Machine.

The AKU SHAPER C.S.M is designed to be the machine for all your custom shapes, mid-range and short board needs. The perfect shaping tool for the local shaper. This special purpose machine has been designed using high quality components and craftsmanship. All of which has been manufactured and assembled in house at our factory in Australia.

australian made cut out.png

Machine Features.

Our Custom Shaping Machines are built to last with a welded frame made out of 50mm x 50mm RHS minimising vibration allowing a cleaner overall finish.

The Custom Shaping Machine has a gravity fed self-lubricating system.

The blanks are supported by swivel mounted Vacuum cups and balance arms to allow for a quick and easy loading procedure whilst maintaining perfect stability throughout the cutting path. The 360 degree swivel motion helps negate blank inaccuracies whilst holding it true to the design.

High quality stepper motors on all three axis makes the machine move seamlessly throughout the cutting path leaving you with an accurate and smooth finish.

Tungsten Blade coarse grit (1).png
Deck Plug.JPG
Conicle Spike Blade.jpg

Pioneered by AKU SHAPER, our specially designed cutting blade will leave you with the smoothest cuts of any CNC machine on the market today. Unique to AKU SHAPER the blade allows you to make full rail cuts up to 140 degrees. The blade also changes direction for each side of the board minimising burn whilst maximising accuracy.

What makes the AKU SHAPERS full rail cuts possible and perfectly symmetrical is our complete alignment system.

First of all with our machine mounted line laser for the deck.

Then with the guidance of our flip assist and actuators for the bottom.(actuators only available on the PRO MODEL)

To learn more about our alignment systems and other

innovations click the button bellow.


C.S.M. PACKAGE Includes.

  • A fully tested AKU SHAPER Custom Shaping Machine (10ft x 32”) manufactured in Australia.

  • A new computer loaded with AKU SHAPER CNC software and design software of your choice.

  • 3 axis controller with AC stepper motors.

  • Speed adjustable 2 Kw brushless spindle motor.

  • 50 x 50mm RHS welded construction.

  • Compressed air oil system.

  • Vacuum pump for holding board on machine.

  • Spare parts package.

  • Operations manual (PDF)

  • 12 month warranty including parts, quality of construction and workmanship.

  • Technical assistance via Email, Skype and remote access software.

Enquire
